Detection of Pipe Elbows

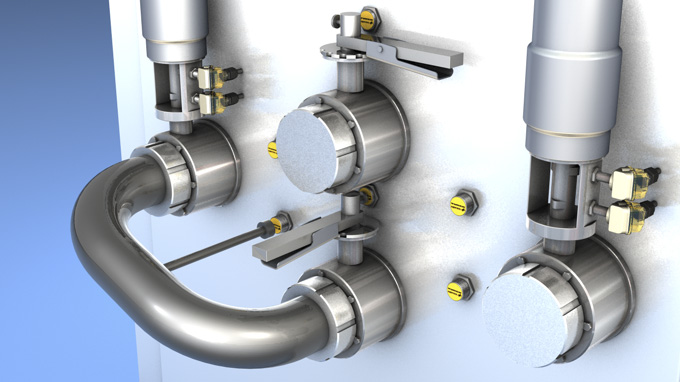

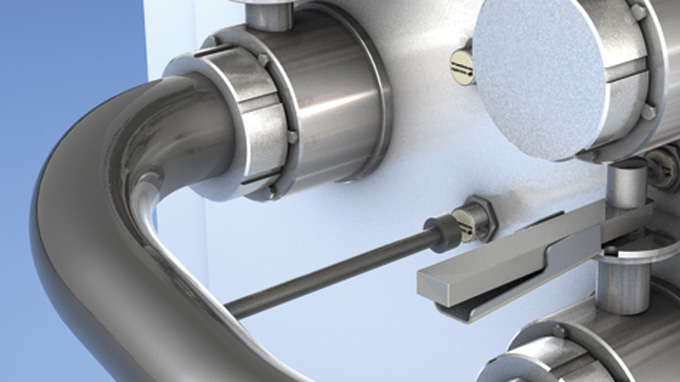

A very simple and efficient way to ensure the correct position of a pipe elbow is to attach an actuator at the elbow and detect it’s position with an inductive sensor for each possible elbow position. The greatest danger for these sensors is the mechanical damage caused by the operator during mounting. Over time this risk significantly increases as the seals wear and thus the actuator is moving closer to the sensor. Due to their especially large switching distance upox+ sensors provide an extra safety distance that avoids sensing problems.

Your Benefits

The inductive uprox+ WD sensors reliably detects pipe elbows at pipe manifolds and thus ensures high system availability
Secure functioning thanks to extra-large switching distance, even with worn seals
High tightness and resistance to chemicals

Rozetka używana w fabryce napojów

Więcej informacji

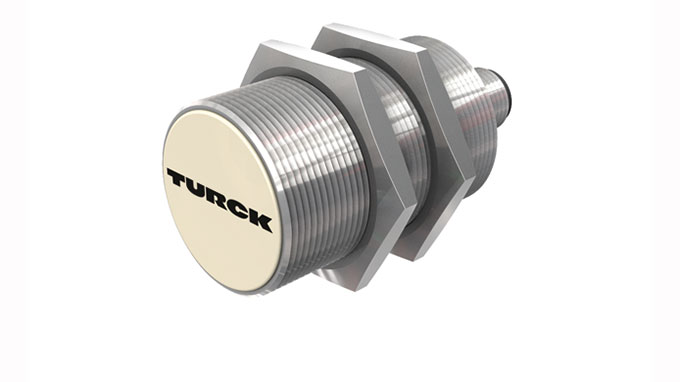

Link to the Product – Inductive Sensor BI15U-EM30WD-AP6X-H1141/3GD
